SMT topics in focus
Having a solid and even support for the substrate is a key to a high yield and more efficiency in screen and stencil printing. ASMPT offers a broad spectrum of custom-tailored, automatic and modular toolings and carrier systems for virtually any production requirement.
Brochure
With DEK MASS, which sets new standards for printing processes with singulated substrates, ASMPT offers a perfect solution for particularly demanding applications such as smartphone panels, etc.
Ideal for processing challenging parts such as LGAs, BGAs, 01005 passives and 0.25 mm to 0.3 mm BGAs, DEK TRS leverages the concepts of Virtual Panel Tooling, extending it to the next level with extreme edge alignment. Singulated substrates can be mass imaged with precision for higher throughput.
DEK Virtual Panel Tooling (VPT) solves the challenge of high-throughput multi-part processing. The unique DEK VPT carrier and alignment system allows individual substrates to be processed simultaneously for high UPH printing.
Flex Support is the innovative support solution that gives you maximum flexibility. The secret is its modular design. The Flex Support Base Tower System gets adapted to the respective printer platform, including printers from manufacturers other than DEK. The system stays in the printer and keeps it open to all applications you want to support.
Custom dedicated tooling solutions are designed for optimal substrate support and the best quality print. Since any movement or incorrect positioning of the substrate during processing can result in defects, ASMPT uses proven design concepts and solid manufacturing methods to safeguard against these issues. An additional benefit: the side support of the squeegee, that will improve not only the lifetime of the stencil significantly, but also the print quality.

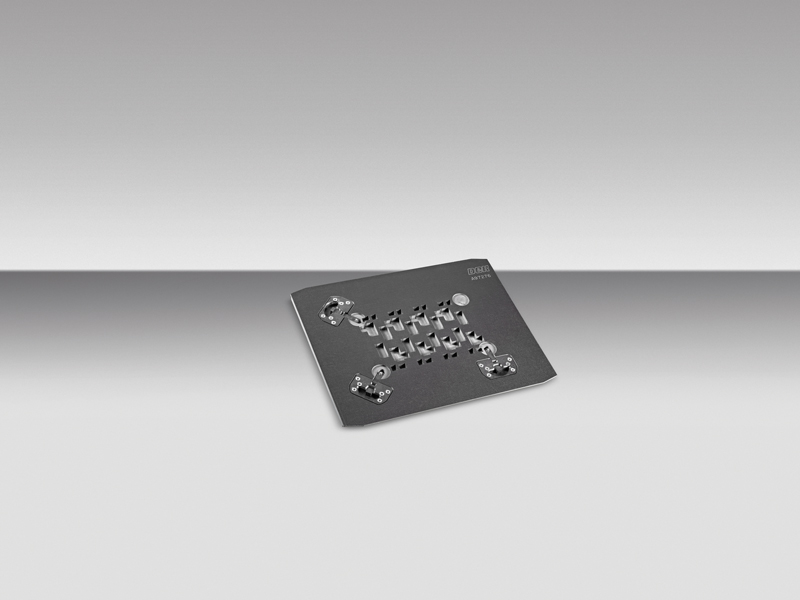

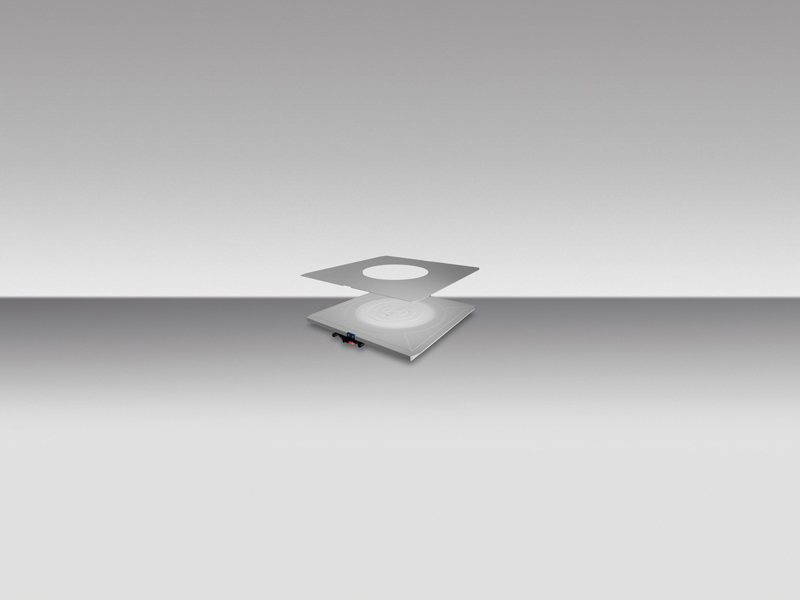

DEK Support bars serve as a quick and universal support solution for PCBs to be printed on one side only and other substrates. The operator places the DEK support bar manually on the printing table between the conveyors. That way, a wide range of PCBs and substrates can be printed after a short setup time.
ASMPT’s award-winning Grid-Lok™ Gold automatic board support provides secure, repeatable, adjustable board support for high-mix environments. Grid-Lok Gold incorporates pneumatically-operated pins that automatically adapt to the board surface and then lock in place to prevent board movement and flex during the screen printing and testing processes.
For the placement process, where robustness and protection against vibration are critical, DEK Grid-Lok™ Silver provides the solution. Versatile and adaptable for different assemblies, DEK Grid-Lok™ silver delivers the benefits of quick changeover with the requirement for solid substrate support.
Everything you need for a longterm use of DEK Grid-Lok™
The innovative DEK systems for PCB support are regarded as a guarantee for maximum print quality and stable manufacturing processes. See for yourself the fully automated DEK Grid-Lok for flexible PCB production and the application-specific DEK Toolings for your series production.
Order PCB Support Solutions in the ASMPT Webshop
As the industry’s technology leader, ASMPT offers a broad portfolio of best-in-class products. Our solutions stand out with their perfect interaction of hardware, software and service components – powerful, smart, and ready to raise your production to a new level.
