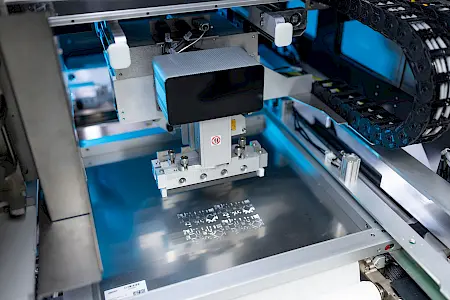

DEK TQ printer platform

Top quality and performance at maximum flexibility

Attractive Financing

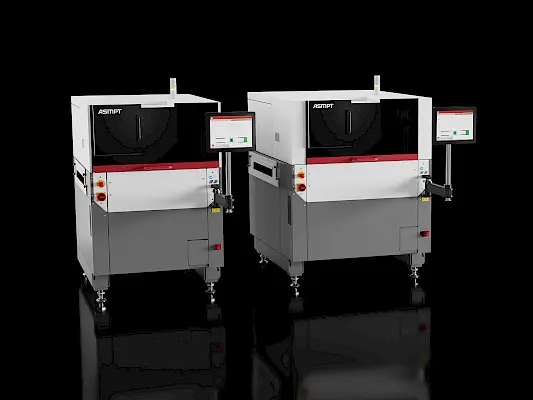

The DEK TQ is superfast (core cycle time: only 5 seconds), highly precise (±17.0 microns @ 2 Cmk), and a real space-saver. With two model versions, the platform now also features outstanding flexibility: the DEK TQ for boards measuring up to 400 by 400 millimeters, and the DEK TQ L for boards measuring up to 600 by 510 millimeters.

With its newly developed stencil cleaning system, an innovative printhead with integrated paste height control and a fully automatic paste dispenser, the DEK TQ printer platform delivers maximum performance with outstanding operating time and minimum support requirements. Thanks to its many interfaces and supported communication standards, it fits seamlessly into ASMPT’s Open Automation concept. And with the new DEK TQ L for boards measuring up to 600 by 510 millimeters and smart automation options, the highly precise and powerful printer platform delivers maximum flexibility in a tiny footprint.



Here’s how we made it possible: New three-stage conveyors, the unique ASMPT NuMotion controller with fiber-optic cabling and up to 50 percent faster cleaning processes guarantee high-speed operation. New drives, off-belt printing and innovative clamping systems deliver unprecedented accuracy and an exceptionally stable printing process.

The new generation of the DEK TQ paste printing platform also fits seamlessly into our Open Automation concept:

  • Eight and more hours of continuous operation
  • Newly developed flexible high-speed stencil cleaning system
  • Automatic paste management
  • Automatic smart pin support for pins with diameters of 4 millimeters and 12 millimeters
  • Easily integrated via IPC-HERMES-9852 and IPC-CFX
  • Flexible and scalable automation

The DEK TQ stands for performance

Maximum throughput:

  • DEK TQ core cycle time: 5 seconds (DEK TQ L: 6.5 seconds)

Top certified precision:
Unprecedented paste printing quality for the latest generation of super-small 0201 metric components:

  • System accuracy: up to ±12.5 microns @ 2 Cmk
  • Wet printing accuracy: up to ±17.0 microns @ 2 PK

Measured and certified with external AVS system prior to each machine’s delivery

Best floorspace performance:

  • DEK TQ: only 1.3 square meters (DEK TQ L: 1.95 square meters

DEK TQ Innovations

Highly flexible 3-stage conveyor system

  • The DEK TQ accommodates circuit boards that are up to 250 millimeters long (DEK TQ L: up to 345 millimeters)

Open and easy to integrate

  • IPC-HERMES-9852, Closed-Loop-to-SPI, ASM OIB, IPC CFX

Efficient programming

  • New instinctive software and easy offline programming via WORKS Printer Programming

Double the capacity with back-to-back

  • The perfect space-saving solution for lines with dual conveyors

Newly developed efficient and flexible high-speed stencil cleaning system

  • Easy change of cleaning width and fabric roll width
  • The 22-meter DEK TQ fabric roll is long enough for a complete shift under normal cleaning conditions
  • Seven-liter cleaning fluid tank that is easily accessible from the front of the machine

DEK TQ Options

With our smart options that you can add at any time you improve your productivity, printing quality and flexibility, as well as your degree of automation.

Automatic smart pin support (for 4-millimeter and 12-millimeter pins)

  • DEK TQ: 30-pin magazine (DEK TQ L: 60-pin magazine)

DEK paste management

  • The best combination of automatic paste application and paste roll height control

Non-stop solder paste refilling

  • The Dual Access Cover makes it possible to replace paste cartridges without having to stop the printer

Clamping of all circuit board types

Even more precision with High Flow Vacuum

  • The special vacuum tooling solution for individual circuit boards in carriers such as those required for high-end smartphones

Enhanced solder paste control
